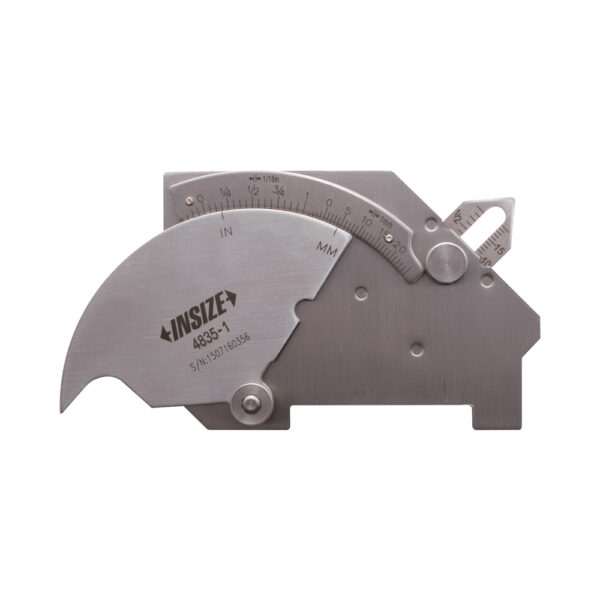

Product Description
- Adjustable scale to compensate pointer wear
- Made of stainless steel
- Measurement: Crown height (Range: 0-25mm(0 – 1 inch), Graduation: 1mm(1/16 inch), Accuracy: ±0.5mm)
- Measurement: Fillet weld leg height (Range: 0-25mm(0 – 1 inch), Graduation: 1mm(1/16 inch), Accuracy: ±0.5mm)
- Measurement: Misalignment(high-low) (Range: 0-25mm(0 – 1 inch), Graduation: 1mm(1/16 inch), Accuracy: ±0.5mm)
- Measurement: Undercut depth (Range: 0-2mm(0-1/8 inch), Graduation: 1mm(1/16 inch), Accuracy: ±0.5mm)
- Measurement: Fillet weld throat size (Range: 0-20mm(0 – 3/4 inch), Graduation: 1mm(1/16 inch), Accuracy: ±0.5mm)
- Measurement: Angle of preparation (Range: 0-60°, Graduation: 5°, Accuracy: ±1°)
- Measurement: Length (Range: 0-60mm(0 – 2 inch), Graduation: 1mm(1/16 inch), Accuracy: ±0.5mm)
- Measurement: 45° angle (Accuracy: ±1°)
